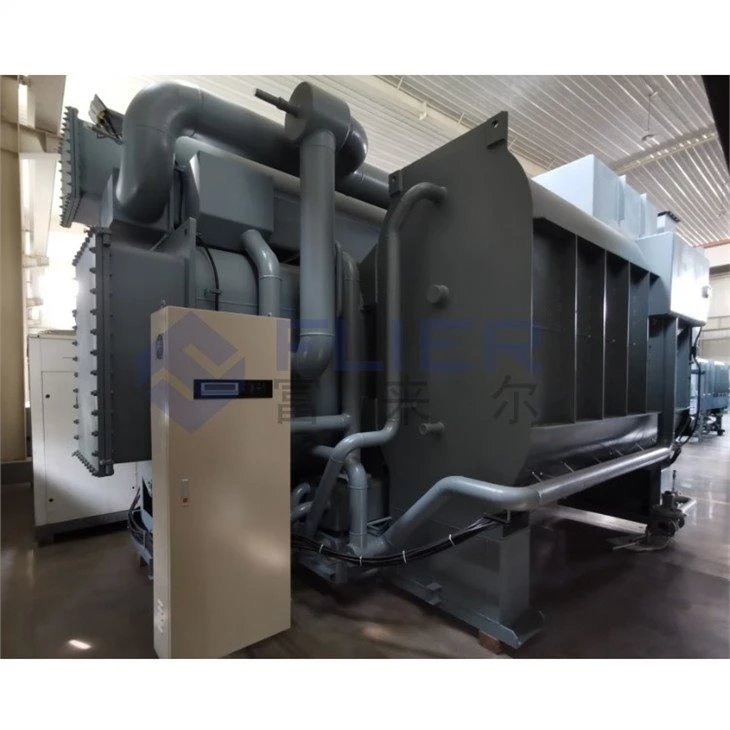

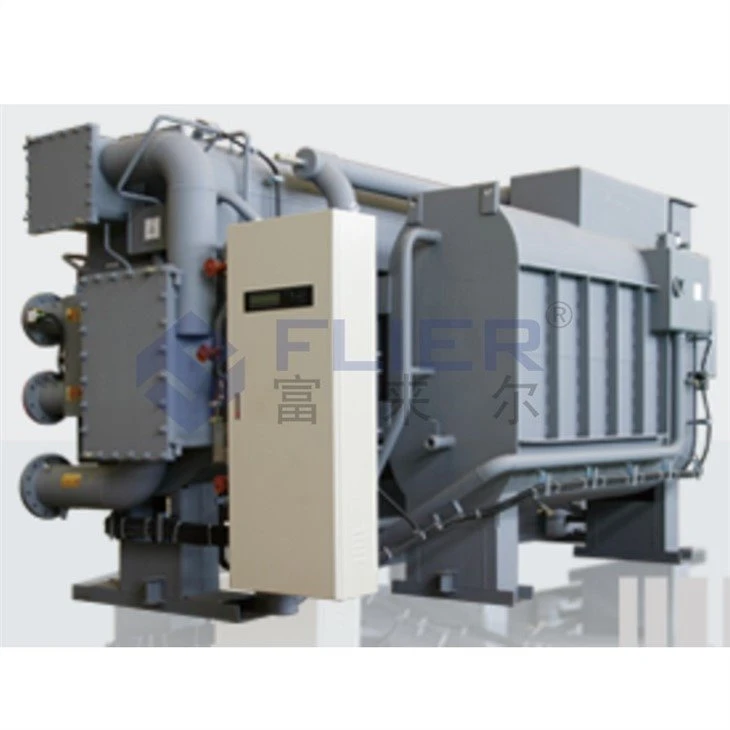

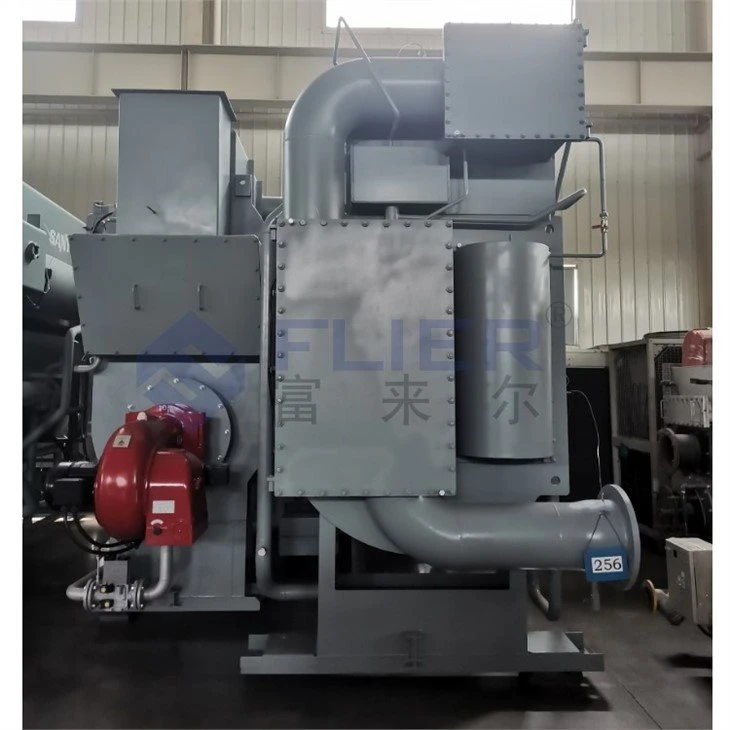

Panasonic Sanyo Direct-fired Absorption Chiller
Daim ntawv thov Classification
Siv cov roj av, cov roj av liquefied, cov roj hauv nroog, cov roj coke cub, lub teeb diesel, thiab lwm yam raws li cov khoom siv hluav taws xob los tsim cov dej txias tshaj 5 degree thiab cov dej kub hauv qab 85 degree rau hauv nruab nrab cua txias lossis cov txheej txheem kev lag luam kom ua tiav cov cua txias hauv lub caij ntuj sov thiab cua sov thaum lub caij ntuj no. , Tshem tawm qhov xav tau rau cov cua sov boilers thiab loj-muaj peev xwm faib hluav taws xob. Siv dav hauv ntau yam kev lag luam hauv lub tebchaws xws li chaw ua haujlwm, tsev so, tsev so, khw malls, theaters, stadiums, factories, roj teb, thiab lwm yam.
Muaj peev xwm ntau: tub yees: 63-11650KW; cua sov: 53-9800KW
Thaum tshav kub kub tej yam kev mob: natural gas, liquefied petroleum gas, lub nroog gas, lub teeb diesel coal txaj methane, shale gas thiab lwm yam unconventional natural gas.
Cov yam ntxwv tshwj xeeb:
Muaj ntau hom kev siv hluav taws xob: lub zog huv huv natural gas, liquefied petroleum gas, lub nroog gas, lub teeb diesel thee coal bed methane, shale gas thiab lwm yam unconventional natural gas.
Kev ua haujlwm siab thiab txuag hluav taws xob: Phaj hluav taws xob sib hloov yog siv los ntxiv dag zog rau kev sib pauv cua sov thiab txhim kho thermal efficiency; multi-theem cua sov rov qab los txhim kho chav ua haujlwm; built-in refrigerant adaptive ntaus ntawv kom ua tiav lub zog txuag kev ua haujlwm; Cov dej txias uas tsis tshua muaj kub thiab kub kub ua haujlwm tsim kom ua tiav qhov kev hloov pauv loj ruaj khov.
Muaj kev nyab xeeb thiab txhim khu kev qha: kev sib sau ntawm kev tshawb fawb, kev tsim, kev tsim khoom, thiab kev siv tshuab zoo. Ntau yam kev tiv thaiv kev tiv thaiv kev nyab xeeb, los ntawm kev suav cov kev daws teeb meem kom raug, tiv thaiv qhov tshwm sim ntawm crystallization.
Automation thiab networking: yooj yim accessory khoom tswj system, heev networked tsev automation thiab tej thaj chaw deb networked xyuas qhov system.
Kev tiv thaiv ntsuab thiab ib puag ncig: Kev siv ib puag ncig tus phooj ywg lithium molybdate corrosion inhibitor, palladium tube tso cov cuab yeej los xyuas kom meej lub tshuab nqus tsev, cov cuab yeej ua tiav huab cua raws caij nyoog.
Txoj cai Flow Chart:
Kev ua haujlwm hauv chav txias: Lub hauv paus ntsiab lus ua haujlwm yog: cov dej txias hauv cov evaporator yog txias los ntawm cov dej txias txias los ntawm lub condenser tom qab decompression thiab throttling. Cov refrigerant dej nws tus kheej absorbs cua sov ntawm cov dej txias thiab evaporates los ua refrigerant vapor, uas nkag mus rau hauv lub absorber thiab yog cov concentrated tov yog absorbed, thiab cov concentrated tov los ua ib tug dilute tov.
Lub dilute tov nyob rau hauv lub absorber yog pumped mus rau lub refrigerant condensate thaum tshav kub kub rov qab ntaus ntawv, low-temperature heat exchanger, high-temperature heat exchanger, thiab ces kub nce, thiab thaum kawg nkag mus rau high-temperature regenerator, qhov twg dilute tov yog rhuab. . Concentrate mus rau qhov nruab nrab concentration daws. Qhov nruab nrab concentration tov dhau los ntawm cov kub kub exchanger, nkag mus rau hauv lub qis kub regenerator, yog rhuab los ntawm lub refrigerant chav generated nyob rau hauv lub siab kub regenerator, thiab dhau los ua qhov kawg concentrated tov. Cov tshuaj concentrated ntws los ntawm qhov ntsuas kub qis, qhov ntsuas kub qis dua, thiab tom qab ntawd nkag mus rau hauv absorber. Dilin yog nyob rau hauv cov yeeb nkab dej txias thiab nqus cov tub yees vapor los ntawm cov evaporator los ua cov tshuaj dilute. Ntawm qhov tod tes, nyob rau hauv high-temperature regenerator, lub high-temperature flue gas generated los ntawm combustion ntawm sab nraud roj heats lithium bromide tov thiab cov dej vapor generated nkag mus rau hauv lub low-temperature regenerator, heats lub intermediate concentration tov, thiab condenses nws tus kheej mus rau hauv dej txias. Cov khoom siv hluav taws xob rov qab, qhov kub thiab txias yog txo, thiab cov tub yees vapor generated los ntawm qhov kub thiab txias regenerator nkag mus rau hauv lub condenser kom txias. Tom qab decompression thiab throttling, nws dhau los ua cov dej txias txias, uas nkag mus rau hauv evaporator, thiab tee rau ntawm cov kav dej txias kom txias thiab nkag mus rau hauv lub evaporator. Los ntawm dej txias.
Lub voj voog saum toj no yog rov ua dua kom thaum kawg ua tiav lub hom phiaj ntawm kev npaj cov dej txias qis.
Kev ua haujlwm sov hauv chav: Cov kua dilute absorption yog rhuab thiab concentrated los ntawm high-temperature regenerator los tsim refrigerant vapor, uas yog xa ncaj qha mus rau lub evaporator thiab absorber. Thaum tshav kub kub pauv yog nqa tawm hauv evaporator los npaj cov dej sov. Tsis tas li ntawd, cov kua nqus dej uas tau ua kom muaj zog mus rau qhov nruab nrab concentration nkag mus rau hauv lub absorber, sib tov nrog cov dej tub yees thiab dhau los ua cov kua dej diluted, thiab tom qab ntawd dhau los ntawm cov refrigerant condensate heat recovery device, low-temperature heat exchanger, thiab high- kub kub exchanger kom rov qab mus rau siab kub. Regenerator.
Los ntawm lub voj voog saum toj no, cua sov ua tiav.
Cov qauv tshiab, tshiab technology
Tsib lav lub tshuab nqus tsev tsim
Optimize tus qauv tsim thiab txhim kho thermal efficiency
Kev siv cov khoom siv hluav taws xob hloov pauv hluav taws xob tshiab ua kom cov cua sov thiab huab cua hloov pauv ntau, thiab kev hloov pauv cov hluav taws xob sib txuas tau nce los ntawm 15 feem pua.
Lub tshav kub exchanger txais ib yam tshiab ntawm countercurrent cross-sweeping tshav kub pauv, thiab lub thermal efficiency yog zoo heev.
Lub tog raj kheej sab saud muaj cov txheej txheem nqus tsev vacuum built-in kom txo tau cov cua sov sab hauv.
Built-in refrigerant adaptive txias cia khoom.
1. Load adaptation: Tsis siv neeg ntxiv cov refrigerant dej nyob rau hauv lub evaporator raws li qhov loj ntawm lub load los xyuas kom meej qhov ruaj khov kev ua tau zoo ntawm chav tsev.
2. "Cold storage": kev txuag hluav taws xob ntau tshaj plaws. Chav tsev tuaj yeem txiav txim siab qhov loj ntawm qhov thauj khoom ntawm tus neeg siv. Thaum lub load me me, lub cuab yeej cia li nkag mus rau hauv lub xeev "txias cia". Thaum lub load loj, nws tso tawm lub zog txias kom txo tau cov roj noj.
3. Txo lub sij hawm pib ntawm chav tsev kom tsuas yog 5-8 feeb.
4. Txo lub sij hawm ua haujlwm dilution, tsuas yog 6-12 feeb.
5. Kho kom haum rau cov dej txias hauv dej txias (15 degree)
6. Txo cov cua sov ntawm cov evaporator.
7. Zoo tiv thaiv "cavitation" ntawm lub twj tso kua mis tub yees thiab ua kom lub neej ntev ntawm lub twj tso kua mis.
Txais yuav ib tug xov tooj ntawm cov thev naus laus zis tshiab los tiv thaiv cov tub yees muaj kuab paug
Lub xeev txias regeneration thev naus laus zis ntawm lub siab kub regenerator ua rau cov kev daws teeb meem yooj yim dua, thiab nws tsis yooj yim rau cov tub yees muaj kuab paug.
Hom tshiab muab ob npaug rau nws tus kheej tu dripping ntaus ntawv los tiv thaiv cov tub yees muaj kuab paug.
Ob chav tiv thaiv thiab purification qhia ntaus ntawv tuaj yeem tiv thaiv kom tsis txhob muaj kuab paug ntawm cov tub yees thiab xyuas kom muaj kev ua tau zoo ntawm chav tsev.
Fast start-up speed, luv downtime, txuag zog
Kev siv cov khoom siv hauv cov tub yees adaptive txias cia khoom, tshiab zaus hloov dua siab tshiab technology, txias regeneration technology ntawm high kub regenerator thiab stepless hloov ntawm roj tswj valve, txuag zog noj thaum pib thiab kaw, txuag 40 feem pua thaum pib thiab 33 feem pua thaum kaw.
Direct combustion bromine chiller voj voog ntim hloov txoj kev
Direct combustion bromine chiller voj voog ntim hloov txoj kev
Tsis muaj kev tswj valve ntawm Ebara Red series direct combustion units, thiab nws yog ib qho tsim nyog los kho cov kev daws teeb meem los ntawm kev kho zaus ntawm qhov hloov pauv zaus.
Lub twj tso kua mis thiab cov tshuaj tsuag tshuaj tsuag twj tso kua mis ntawm no series ntawm chav tsev yog nruab nrog cais zaus converters, thiab ob qho tib si siab thiab qis generators yog nruab nrog cov kua theem electrodes. Hauv cov ntsiab lus, thaum lub tshuab hluav taws xob siab nyob rau hauv cov kua dej qis, qhov kev tswj tsis siv neeg ntawm chav tsev yuav ua rau kom qhov zaus ntawm cov twj tso kua mis. Thaum lub tshuab hluav taws xob siab nyob rau hauv cov kua qib siab ntau, qhov zaus ntawm cov twj tso kua mis yuav cia li txo qis - qhov zaus yuav nce lossis txo qis kom txog thaum cov kua theem nyob rau ntawm qhov tsim nyog, thiab cov twj tso kua mis yuav tswj tau qhov zaus tam sim no kom xa. kev daws teeb meem rau lub tshuab hluav taws xob, ua tiav lub xeev ruaj khov.
Cov kua theem tswj ntawm lub cav qis kuj yog cov logic zoo sib xws, tshwj tsis yog tias qhov zaus ntawm cov tshuaj tsuag twj tso kua mis hloov pauv. Lwm qhov sib txawv yog tias thaum cov kua theem ntawm lub cav qis qis, qhov zaus ntawm cov twj tso kua mis txo qis, thaum lub sij hawm cov kua theem ntawm lub cav qis yog siab, qhov zaus ntawm cov twj tso kua mis yuav nce.
Cov logic yuav zoo li yooj yim piav qhia, tab sis muaj ntau yam tsis muaj qhov yuav tsum tau teeb tsa ntawm lub vaj huam sib luag.
Ua ntej, txawm tias nws yog lub twj tso kua mis los yog lub twj tso kua mis tsuag, nws muaj qhov yooj yim zaus, thiab cov ntaub ntawv siv rau qhov yooj yim zaus yog qhov sib txawv ntawm lub tshuab hluav taws xob siab thiab qhov hluav taws xob siab ntawm lub absorber. Muaj tag nrho ntawm 7 qhov siab, xws li 0, 16kpa, 31kpa, 46kpa, 61kpa, 76kpa, 91kpa, thiab 106kpa. Muaj tus nqi qub nyob rau hauv txhua qhov siab, uas yog thawj zaug ntawm lub zaus hloov pauv raws li kev ua haujlwm tam sim no - cov txiaj ntsig no tuaj yeem hloov kho raws li qhov xav tau ntawm tus engineer. Qhov thib ob, ntxiv rau qhov yooj yim zaus, muaj qhov tseem ceeb tsis zoo hu ua qhov kev kho tus nqi, uas yog qhov zaus ntawm txhua qhov nce lossis txo ntawm cov twj tso kua mis shielded thaum cov kua qib siab lossis qis. Feem ntau hais lus, ntawm cov kua qis, nce 2 hz txhua lub sijhawm kom txog rau thaum cov kua theem tsim nyog; Ntawm cov kua dej siab, txo qis los ntawm 1.5 hz txhua lub sijhawm kom txog thaum cov kua qib tsim nyog. Thiab qhov no 'txhua lub sijhawm' hais txog lub sijhawm kho, uas yog pes tsawg vib nas this cov kua theem teeb liab raug kuaj pom. Ob lub sijhawm kho thiab kho tus nqi tuaj yeem hloov pauv. Nws yog tsim nyog hais tias qhov kev kho tus nqi muaj qhov txwv ntau, thiab yog tias nws tshaj qhov ntau, lub tswb yuav raug muab los qhia tias lub tshuab hluav taws xob ua kua theem tsis hloov.
Muaj ntau yam tsis zoo uas cuam tshuam rau kev hloov pauv ntawm cov ntim ncig, uas yog, kev hloov pauv zaus ntawm qhov hloov pauv zaus. Cov kua theem thiab siab sib txawv tau hais ua ntej lawm, thiab hauv lwm qhov chaw, peb tuaj yeem xaiv seb puas yuav kho qhov zaus ntawm qhov hloov pauv zaus raws li qhov kub ntawm qhov dew point.
Txawm hais tias nws yog lub twj tso kua mis ywj pheej thiab ob lub twj tso kua mis, qhov sib txawv ntawm ob lub twj tso kua mis yuav tsum raug txiav txim siab thaum kho cov ntim ntim. Vim tias Ebara Red series units muaj cov txheej txheem sib luag, qhov no txhais tau hais tias kev ua haujlwm ntawm cov tshuaj tsuag lub twj tso kua mis yog ib txhij thauj cov kev daws teeb meem siab thiab qis rau lub absorber. Uas yog hais tias, piv txwv li tias cov kua theem ntawm lub tshuab hluav taws xob qis yog siab, lub twj tso kua mis tsuag yuav ua rau muaj ntau zaus, uas yuav ua rau muaj kev nce ntxiv hauv cov khoom ntim ntawm lub tshuab hluav taws xob siab thiab txo cov kua theem. Yog li ntawd, nws yuav zoo li lub twj tso kua mis kuj yuav nce zaus tib lub sijhawm.
